Preserve scroll position when toggling markdown Rendered/Raw views by slash9494 · Pull Request #13967 · warpdotdev/warp

slash9494 · 2026-07-19T14:31:19Z

Description

Toggling a markdown file between Rendered and Raw view modes always reset the view to the top of the document, because the toggle replaces the entire pane (FileNotebookView ⇄ CodeView) and the new pane starts with a fresh scroll state.

This PR preserves the reading position across the toggle:

The outgoing pane's vertical scroll is captured as a fraction of its scrollable range (scroll_top / max_scroll, clamped 0..=1).
The fraction rides on PaneEvent::ReplaceWithCodePane / ReplaceWithFilePane (as Option<OrderedFloat<f32>> so PaneEvent keeps Eq).
The incoming pane re-applies it after its content is laid out:
- Raw side: a new ScrollPosition::Fraction variant on the existing pending-scroll (ScrollTrigger) path.
- Rendered side: a new LayoutAction::ScrollToFraction, stored as a pending fraction in RenderState and applied in apply_element_update, gated on the viewport having been laid out (viewport.height() > 0) and the reset content's buffer version. Applying immediately would read a stale (~0) content height on a freshly created pane and clamp to the top.

A fraction is used instead of a char-offset snapshot (ScrollPositionSnapshot) because the two modes render different documents, so a char offset cannot map between them. The landing position is therefore proportional rather than line-exact; documents whose blocks resize late (e.g. large tables) may land slightly off, which seems like an acceptable trade-off for the common case.

All pre-existing callers of the pane constructors pass None and keep the current scroll-to-top behavior.

Linked Issue

Closes #14062

#14062 is the focused, single-scope issue for scroll preservation (following the repo's Markdown viewer: … issue convention). It was split out of #7897, which bundles two separate asks — scroll preservation (this PR) and find/replace in the Markdown viewer (still tracked on #7897).

The linked issue is labeled ready-to-spec or ready-to-implement. — Note: Preserve visual context when switching Markdown view modes + search/replace support #7897 currently has neither label; happy to go through the spec process first if the team prefers.
Where appropriate, screenshots or a short video of the implementation are included below.

Testing

Added a unit test for the fraction ⇄ scroll-top math (crates/editor/src/render/model/viewport_tests.rs::test_scroll_fraction): midpoint mapping, out-of-range clamping at both ends, and content-fits-in-viewport (no scrollable range → 0).
cargo nextest-compatible: full warp_editor suite passes locally; cargo check -p warp clean; ./script/format --check clean.
No UI integration test: the integration framework cannot simulate clicking the Rendered/Raw toggle (noted in crates/integration/src/test/notebooks.rs).
I have manually tested my changes locally with ./script/run

Manually verified end-to-end in a local build, both directions:

Rendered → Raw: scrolled to ~40% in Rendered, toggled, Raw opens at the equivalent position.
Raw → Rendered: scrolled to ~55% in Raw, toggled, Rendered opens at the equivalent position.
Verified via debug logging that the applied scroll_top matches fraction × (content_height − viewport_height) exactly in both directions, and that panes opened without a toggle (file tree, session restore) still start at the top.

Screenshots / Videos

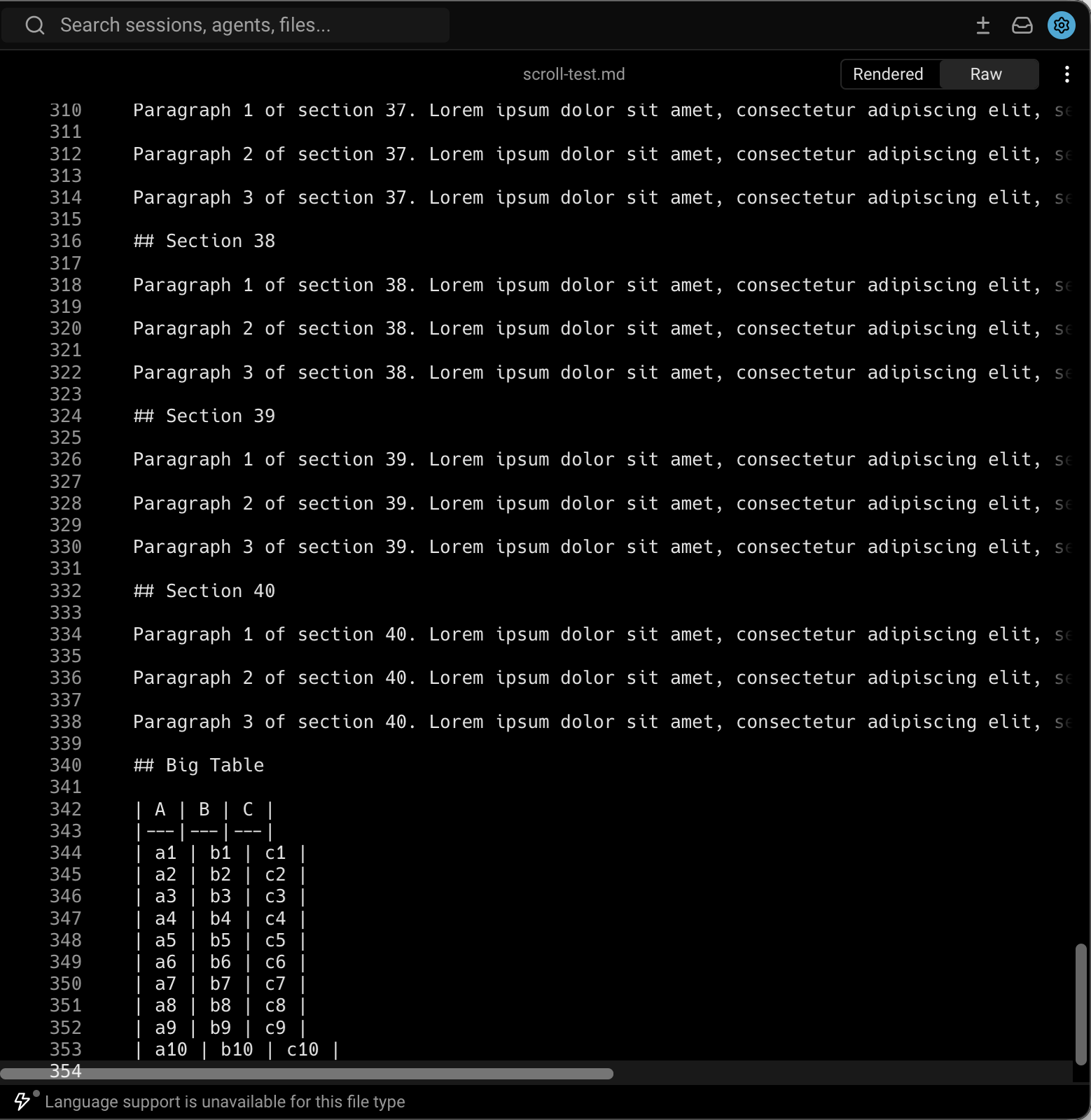

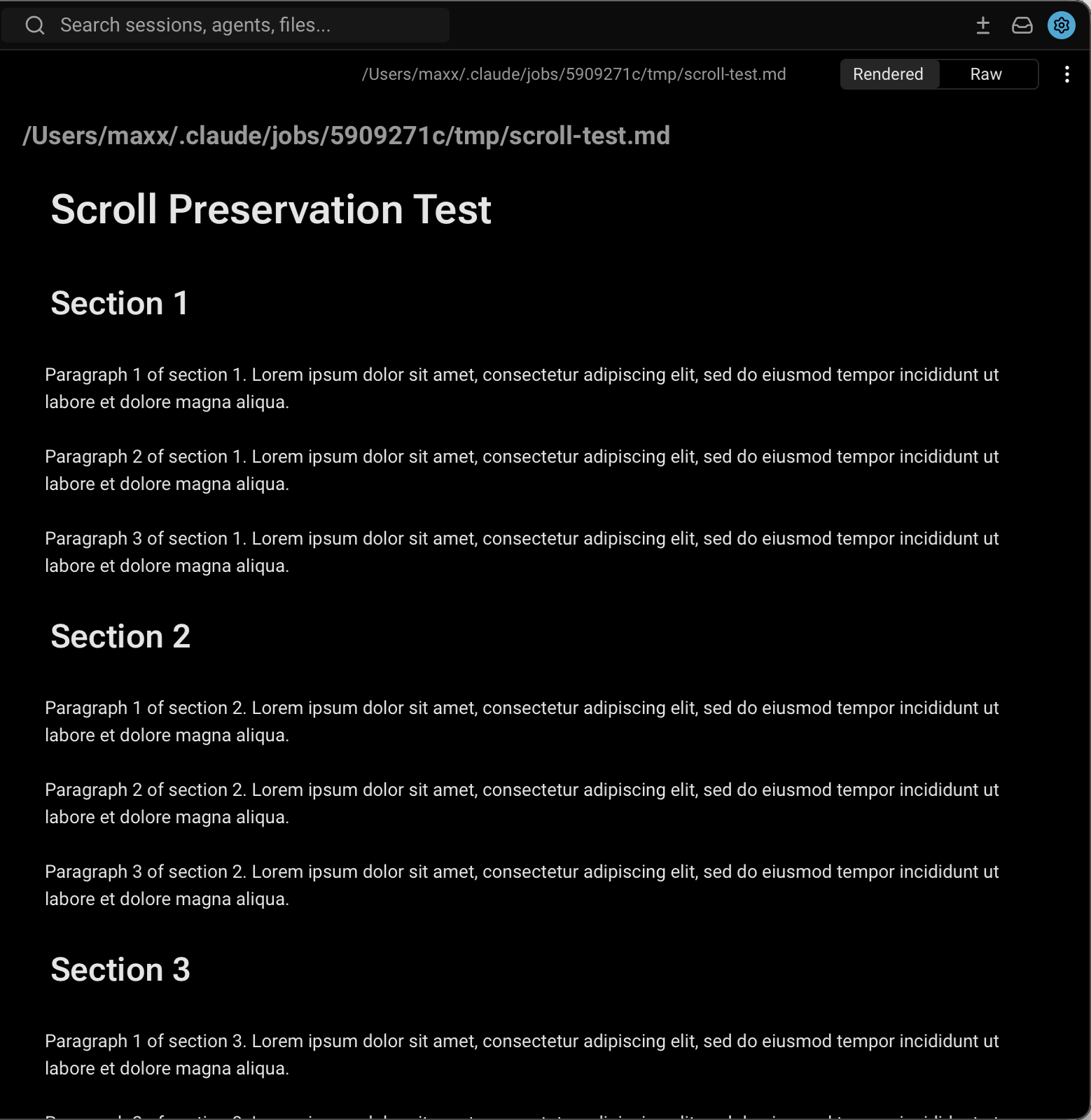

Before (master build): Raw scrolled to the bottom of the document (§37–40 + table) → toggling to Rendered resets to the top:

Raw, scrolled to bottom	→ Rendered: reset to top (bug)

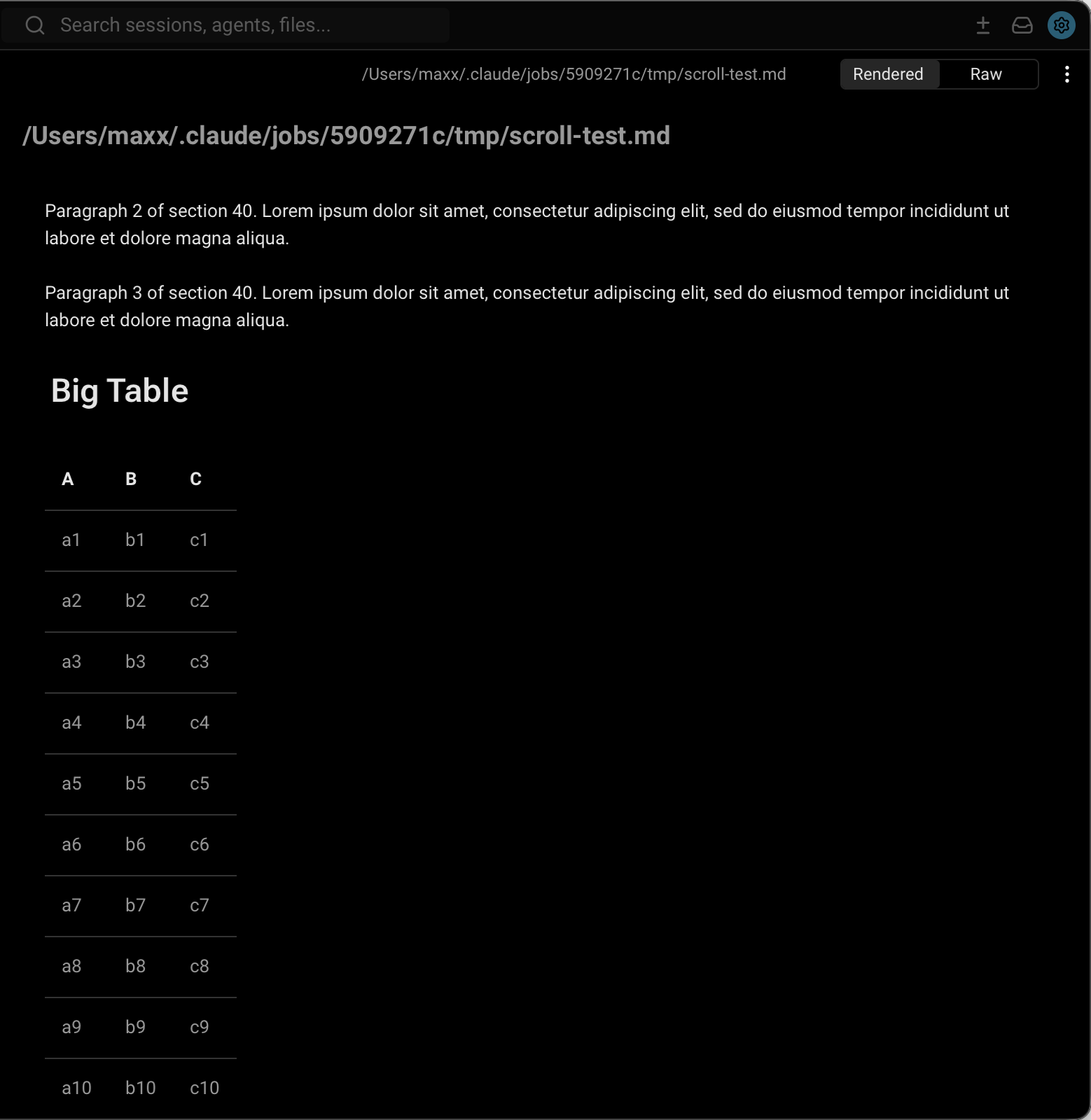

After (this branch): the same action lands at the equivalent position (§40 + table still in view):

Raw, scrolled to bottom	→ Rendered: position preserved

Agent Mode

Warp Agent Mode - This PR was created via Warp's AI Agent Mode

CHANGELOG-IMPROVEMENT: The markdown viewer now preserves your scroll position when switching between Rendered and Raw view modes.

Toggling a markdown file between Rendered and Raw replaces the entire pane (FileNotebookView <-> CodeView), so the new pane always started at the top of the document. Capture the outgoing pane's vertical scroll as a fraction of its scrollable range, carry it on the pane-replacement events, and re-apply it after the new pane's content is laid out. A fraction is used instead of a char-offset snapshot because the two modes render different documents. Application is deferred through the render model's element-update cycle (version- and viewport-gated), since a freshly created pane has no laid-out content yet and applying immediately would clamp the scroll to the top. Fixes the scroll-preservation half of warpdotdev#7897; search/replace is out of scope.

oz-for-oss · 2026-07-20T04:35:12Z

@slash9494

Every PR must be linked to a same-repo issue before Oz can review it.

This PR is linked to #14062, but no linked issue is marked ready-to-implement yet. Only repository maintainers apply that label, so please wait for a maintainer to mark the issue. Once it is marked, push a new commit or comment /oz-review to re-trigger review.

See the contribution guidelines for the full readiness model.

Powered by Oz

oz-for-oss

@slash9494

Every PR must be linked to a same-repo issue before Oz can review it.

Next step: open or find a same-repo issue describing this change, then link it to this PR by adding Closes #123 to the PR description (or using the "Development" sidebar on GitHub). A maintainer will mark the issue ready-to-implement when it is ready. Once it is marked, comment /oz-review to re-trigger review.

See the contribution guidelines for the full readiness model.

Powered by Oz

slash9494 · 2026-07-21T09:26:55Z

/oz-review

oz-for-oss

@slash9494

Every PR must be linked to a same-repo issue before Oz can review it.

This PR is linked to #14062, but no linked issue is marked ready-to-implement yet. Only repository maintainers apply that label, so please wait for a maintainer to mark the issue. Once it is marked, push a new commit or comment /oz-review to re-trigger review.

See the contribution guidelines for the full readiness model.

Powered by Oz

slash9494 · 2026-07-22T01:45:00Z

/oz-review

oz-for-oss · 2026-07-22T01:45:19Z

@slash9494

I'm re-reviewing this pull request in response to a review request.

You can view the conversation on Warp.

I reviewed this pull request and requested human review from: @bnavetta.

Comment /oz-review on this pull request to retrigger a review (up to 3 times on the same pull request).

Powered by Oz

Oz no longer requests changes for this pull request after the latest automated review.

oz-for-oss

Overview

This PR preserves markdown viewer scroll position when switching between Rendered and Raw modes by carrying a scroll fraction through pane replacement and applying it after the incoming editor has laid out. The implementation updates both code-editor and rendered-notebook paths, includes focused viewport math coverage, and the PR description includes before/after screenshots for the user-facing behavior.

Concerns

No blocking correctness, security, or spec-alignment concerns found. No approved or repository spec context was available for this PR.

Verdict

Found: 0 critical, 0 important, 0 suggestions

Approve

Comment /oz-review on this pull request to retrigger a review (up to 3 times on the same pull request).

Powered by Oz

slash9494 · 2026-07-27T08:17:53Z

Hi @bnavetta — gentle nudge on this one. Oz approved it (0 concerns) and requested your review on 07-22, and the linked issue #14062 is marked ready-to-implement, so I believe it's ready whenever you have a moment. Happy to rebase or make any changes if something's needed — just let me know. Thanks!

…-toggle-scroll

slash9494 · 2026-08-04T05:52:37Z

@oss-maintainers — flagging this one per the CONTRIBUTING escalation note.

Oz approved this PR on 07-22 with 0 concerns and requested human review from
@bnavetta, and the linked issue #14062 is marked ready-to-implement. It's been
about two weeks without a human review, so I wanted to raise it here rather than
keep pinging.

I've just merged the latest master in — the branch is up to date with no
conflicts, cargo check passes for both warp_editor and warp, and the
viewport tests pass.

Could someone on the team take a look, or route it to another reviewer if
@bnavetta is stretched thin right now? Happy to rebase or make any changes
needed. Thanks!

bnavetta

Sorry for the delay! One small question, but the code otherwise looks good

bnavetta · 2026-08-19T00:16:55Z

+    }
+
+    /// The current vertical scroll fraction of the active tab's editor, in `0..=1`.
+    #[cfg(feature = "local_fs")]


Does this need to be gated on local_fs? The functionality itself isn’t FS-specific; if this is dead code without a filesystem then we can add a conditional expect(dead_code) attribute

Good catch — you're right that it isn't FS-specific.

Digging in, code/view.rs turned out to be a special case: code/mod.rs path-swaps it to wasm.rs for wasm, so local_fs is always enabled wherever this file compiles and the gate never actually applied. I dropped it rather than swapping the attribute.

notebooks/file/mod.rs does compile for wasm, so its two helpers use the conditional expect(dead_code) you suggested, matching terminal/recorder.rs.

While there I also narrowed set_pending_scroll_fraction to pub(crate) since pane_group is the only caller — that turned out to surface a real dead_code error on wasm that the pub had been masking, now covered by the same attribute.

Verified with cargo clippy -p warp -- -D warnings on both the native target and wasm32-unknown-unknown, plus the viewport tests. Latest master is merged in as well.

…-toggle-scroll # Conflicts: # app/src/notebooks/file/mod.rs

…hem out These helpers only read editor scroll state, so `local_fs` was standing in for "this build has no caller" rather than for an actual filesystem dependency. `code/view.rs` is path-swapped to `wasm.rs` for wasm, so `local_fs` is always enabled wherever it compiles and the gate never applied — drop it. The notebook view does compile for wasm, so mark its helpers with a conditional `expect(dead_code)`, matching `terminal/recorder.rs`. Also narrow `set_pending_scroll_fraction` to `pub(crate)`; it is only called from `pane_group`. Verified with `cargo clippy -p warp -- -D warnings` on both the native target and `wasm32-unknown-unknown`, plus the viewport tests.

cla-bot Bot added the cla-signed label Jul 19, 2026

github-actions Bot added the external-contributor Indicates that a PR has been opened by someone outside the Warp team. label Jul 19, 2026

slash9494 force-pushed the preserve-markdown-toggle-scroll branch 2 times, most recently from 14d87e2 to 2ac5964 Compare July 20, 2026 02:34

slash9494 force-pushed the preserve-markdown-toggle-scroll branch from 2ac5964 to 2db7358 Compare July 20, 2026 04:19

slash9494 marked this pull request as ready for review July 20, 2026 04:35

oz-for-oss Bot previously requested changes Jul 20, 2026

View reviewed changes

slash9494 mentioned this pull request Jul 21, 2026

Markdown viewer: preserve scroll position when toggling Rendered/Raw views #14062

Open

2 tasks

oz-for-oss Bot previously requested changes Jul 21, 2026

View reviewed changes

oz-for-oss Bot reviewed Jul 22, 2026

View reviewed changes

oz-for-oss Bot requested a review from bnavetta July 22, 2026 01:50

Merge remote-tracking branch 'upstream/master' into preserve-markdown…

f6d8e47

…-toggle-scroll

bnavetta reviewed Aug 19, 2026

View reviewed changes

slash9494 added 2 commits August 19, 2026 16:14

Merge remote-tracking branch 'upstream/master' into preserve-markdown…

a6aee80

…-toggle-scroll # Conflicts: # app/src/notebooks/file/mod.rs

slash9494 requested a review from bnavetta August 19, 2026 08:49

slash9494 force-pushed the preserve-markdown-toggle-scroll branch from 22d5b72 to 318299f Compare August 19, 2026 11:17

bnavetta approved these changes Aug 19, 2026

View reviewed changes

bnavetta enabled auto-merge (squash) August 19, 2026 11:43
