Scheduler Starter

A starter template for testing, education, development, and experimentation with the Scheduler.

📚 Full Documentation: Scheduler Docs

The documentation below provides a quick overview of the starter template. For comprehensive documentation, visit the official docs site.

---

🎯 What is Scheduler?

Scheduler is a task manager that lets you write your own tasks in TypeScript/JavaScript. Based on a typed class component, users can write custom processes using any packages, libraries, and tools they want—all while scheduling these tasks to run at specific times.

In a nutshell: Scheduler is a powerful, feature-rich CRON job manager.

✨ Features

• 📘 TypeScript - Fully typed with exported types for better DX
• ⚡ Bun Runtime - Faster execution with Bun and Elysia API framework
• 🔄 Lifecycle Events - Multiple lifecycle hooks for tasks (jobs)
• 📝 Multi-Target Logging - Supports files, Loki, Gotify, and ntfy
• 🎨 Integrated UI - Easy-to-use API with a tightly coupled UI
• 🌐 Built-in Networking - Includes axios for HTTP requests (more tools coming soon)
• 🔐 Authentication - JWT-based auth for both API and UI

🚀 Quick Start

Get up and running in 3 steps:

# 1. Pull the latest Docker images
docker-compose pull

# 2. Copy the auto-generated TypeScript types from the backend image
docker create --name=scc_b ghcr.io/moda20/scheduler_backend:latest && \
docker cp scc_b:/usr/src/app/extraTypes/types.d.ts ./types.d.ts && \
docker container rm scc_b

# the types.d.ts file copied will have all the types needed to code your job and when using the injected features like logging and notifications, an example job show how is it used

# 3. Start the stack
docker-compose up -d

The UI will be available at http://localhost:9002 (updatable in the compose file)

---

📋 Prerequisites & Services

The starter template uses Docker Compose to launch the "Scheduler Stack"—a combination of services that handle all available features. Not all services are mandatory.

Services Overview

Service	Description	Required
scheduler_backend	Main backend that manages jobs	✅ Yes
scheduler_ui	Web UI for managing jobs	✅ Yes
mysql	Database for jobs and authentication	✅ Yes
gotify	Notification server	❌ Optional
loki	Grafana Loki logging server	❌ Optional

---

⚙️ Configuration Guide

Setting Up the Database

The scheduler uses MySQL and requires 2 databases to be created before running the backend:

CREATE DATABASE scheduler_db;    -- For job definitions and stats, this is the default name and can be changed in the .env file
CREATE DATABASE scheduler_base;   -- For authentication and user data, this is the default name and can be changed in the .env file

The backend will automatically run any missing schema migrations on startup.

Setting Up the Backend

Configure the backend using the .env file. A complete .env.example file is provided with all default values. For detailed configuration options, see the backend repo documentation.

Setting Up the Frontend

1. Access the UI at http://localhost:9002
2. Press Command+L (Mac) or Alt+L (Windows/Linux) to open the server configuration drawer
3. Enter the backend URL: http://localhost:8080
4. Optionally save the target locally for easy switching between multiple backends
5. Refresh and login or register (no email verification required)

Configuring External Services (Optional)

📢 Gotify Configuration

Requires 4 environment variables:

Variable	Description
GOTIFY_URL	Host and port of your Gotify server (e.g., http://localhost:9004)
GOTIFY_TOKEN	User token (recommend creating a dedicated user for scheduler)
GOTIFY_APP_TOKEN	Application token for success notifications
GOTIFY_ERROR_APP_TOKEN	Application token for error/crash notifications

📊 Loki Configuration

Requires 3 environment variables:

Variable	Description
GRAFANA_LOKI_URL	Host and port of your Loki server
GRAFANA_LOKI_USERNAME	Username for Loki authentication
GRAFANA_LOKI_PASSWORD	Password for Loki authentication

🔔 ntfy Configuration

Requires 3 environment variables:

Variable	Description
NTFY_URL	Host and port of your ntfy server
NTFY_TOKEN	User token (recommend creating a dedicated user for scheduler)
NTFY_TOPIC	Target ntfy topic

Note: Either Gotify or ntfy can be used as the default notification service, but both can also be used as regular services.

---

💻 Creating Your First Task

Tasks are based on the JobConsumer class. Check out exampleJob.ts for a working example.

Task Structure

A task consists of:

• Single file containing a class that inherits from JobConsumer
• At minimum, a run method that executes your code
• Ability to import any npm packages or call external services
• Export a new instance: export default new ExampleJob();

JobConsumer Methods & Properties

Name	Type	Description
run	function	Main method that executes your job code
preRun	function	Called before run - handles proxy injection and error management
logEvent	function	Primary logging method - sends logs to Loki if configured
complete	function	Call at the end of run to register success or errors
exportResultsToFile	function	Export results as a generic file type
exportCacheFiles	function	Export cache files with TTL (time-to-live) support
injectProxies	function	Manually inject linked proxies into axios
axios	object	Pre-configured axios instance with proxy support
notifications	object	Send notifications via Gotify or ntfy

Example Task

import { JobConsumer } from "@jobConsumer/jobConsumer";
import { JobDTO, JobLogDTO, JobOptions } from "@types/models/job";

class ExampleJob extends JobConsumer {
    constructor() {
        super();
    }

    async run(job: JobDTO, jobLog: JobLogDTO, options: JobOptions) {
        // Log an event
        this.logEvent("Starting example job");

        // Make HTTP request using built-in axios
        const response = await this.axios.get("https://api.example.com/data");

        // Export results
        await this.exportResultsToFile({
            job_log_id: jobLog.id,
            fileName: "results",
            results: { data: response.data },
        });

        // Export cache with TTL
        await this.exportCacheFiles({
            job_log_id: jobLog.id,
            fileName: "cache",
            data: { cached: response.data },
            newFile: true,
        });

        // Mark job as complete
        return this.complete(jobLog, "");
    }
}

export default new ExampleJob();

Adding Tasks to Scheduler

You can add tasks via the API, but it's much easier through the UI:

1. Click + New Job on the main jobs list
2. Select your task file
3. Enter a unique name
4. Set the cron schedule
5. Save!

---

📸 Screenshots & Demos

Authentication & Setup

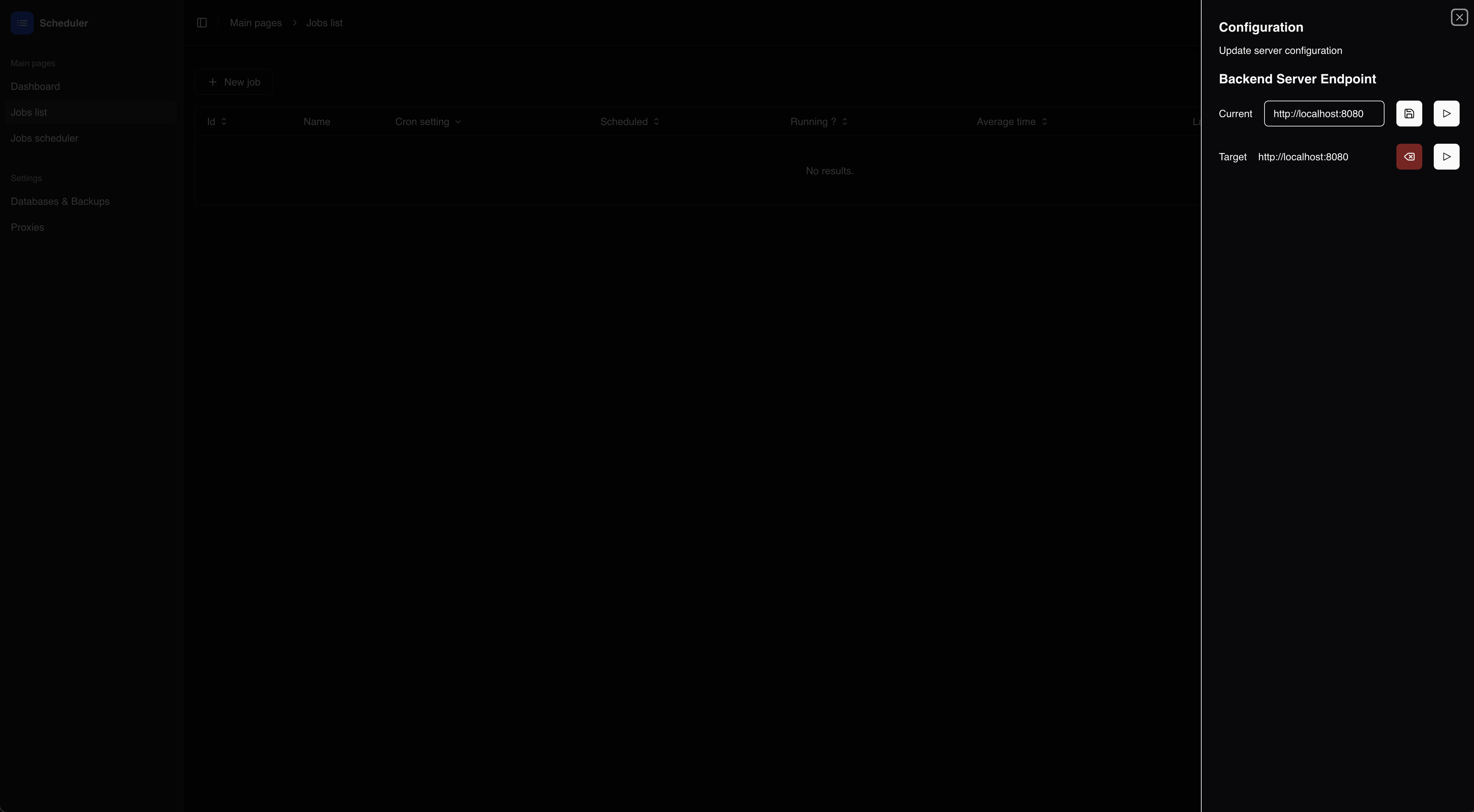

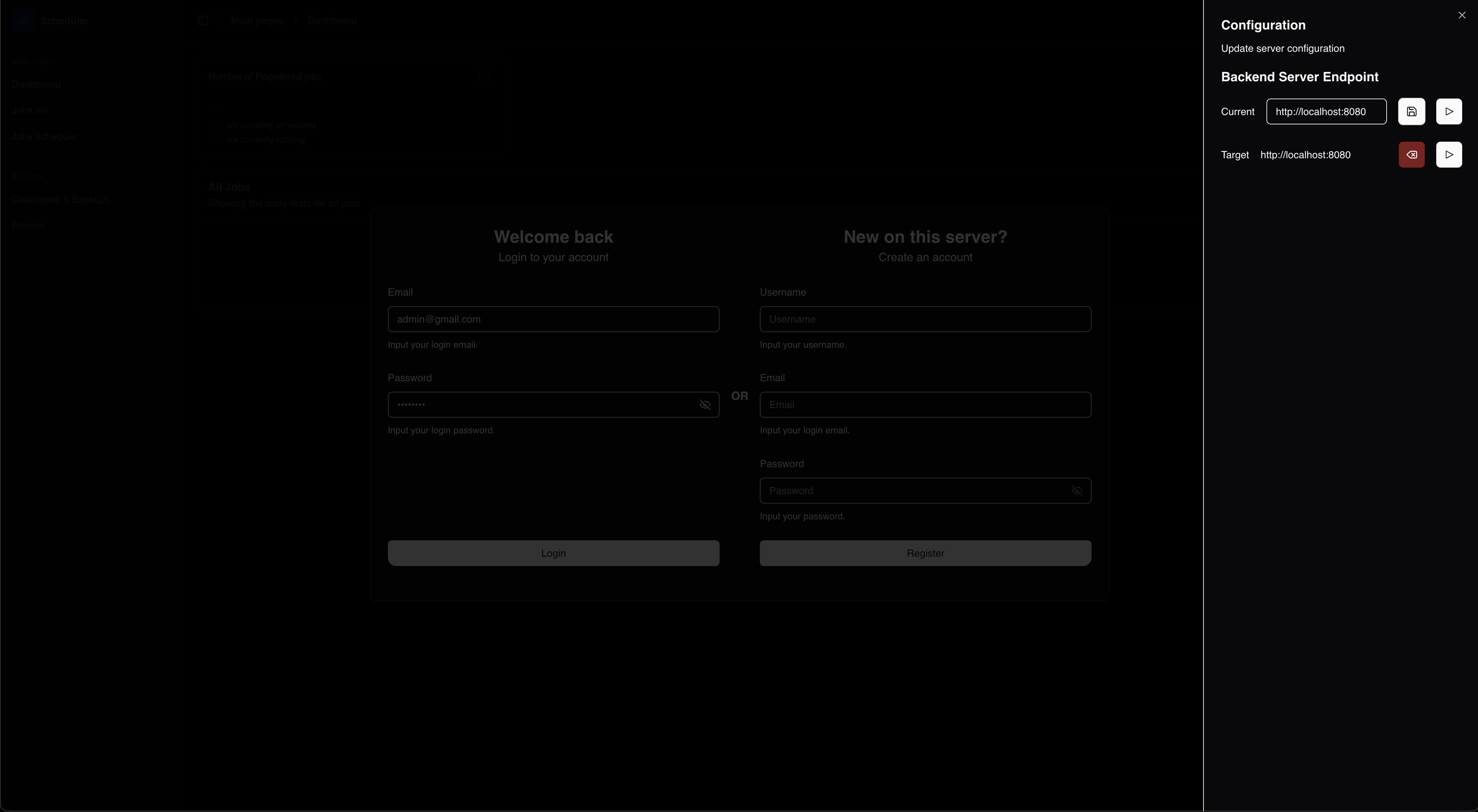

Login Page	Server Target Configuration	Server with Target Set

Job Management

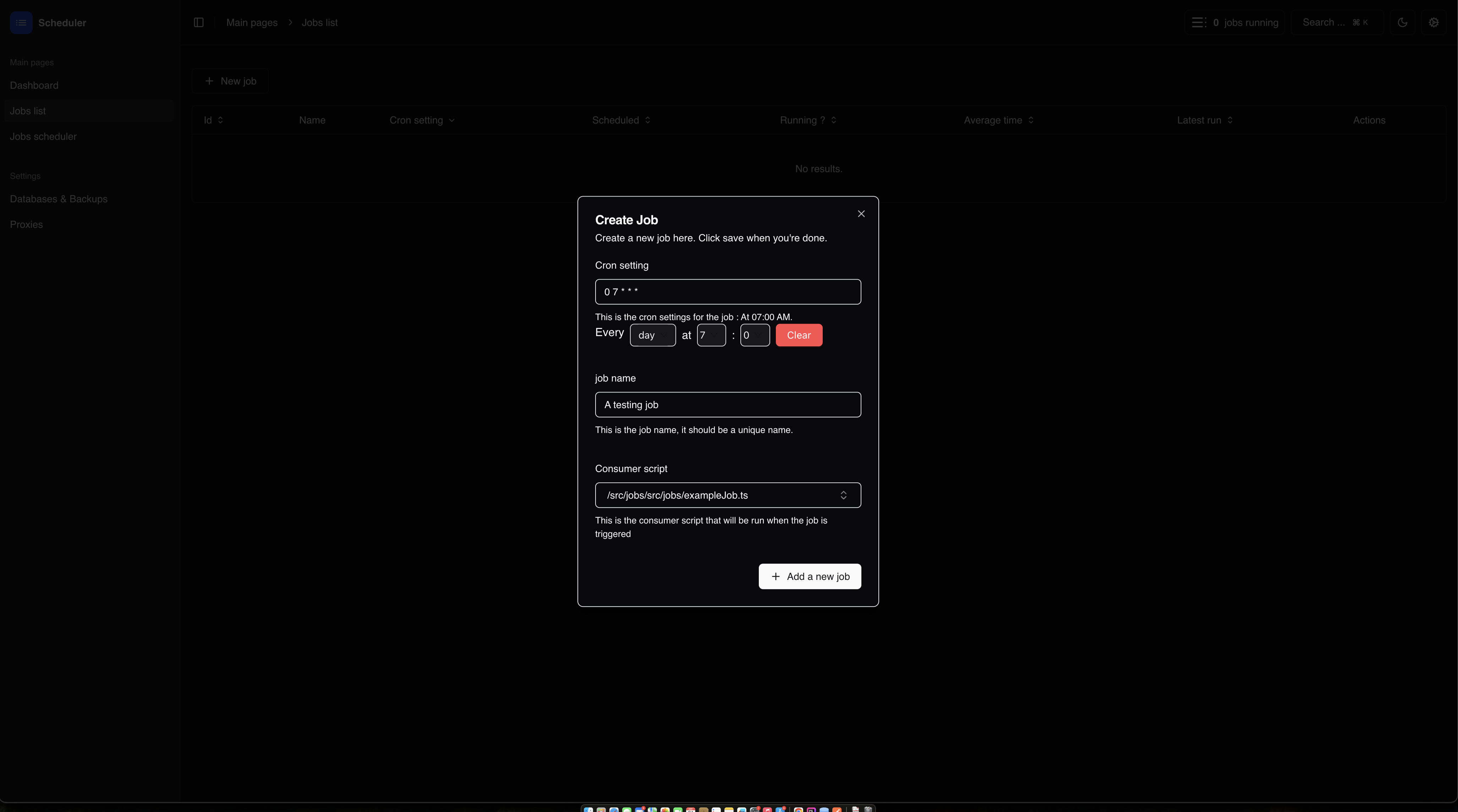

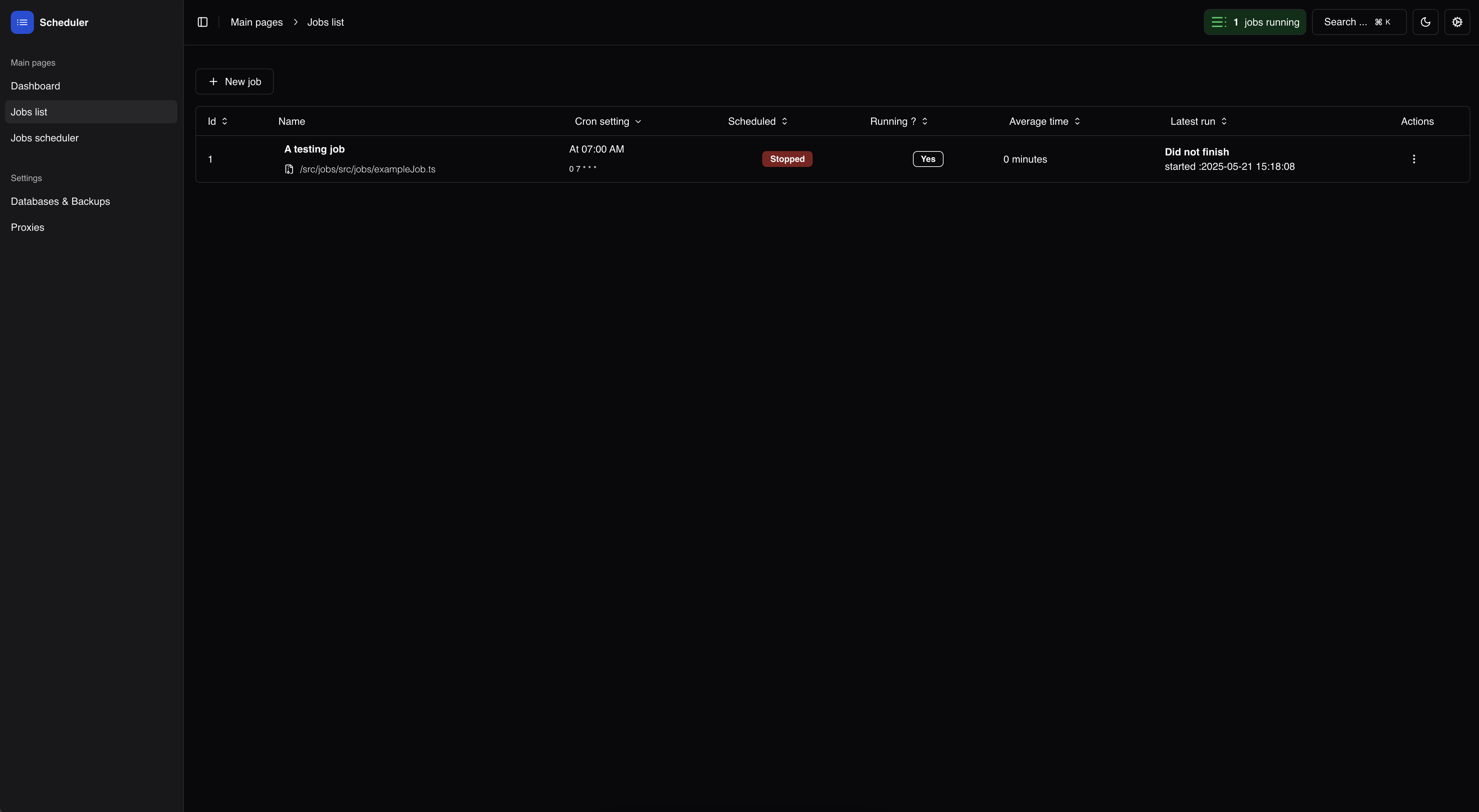

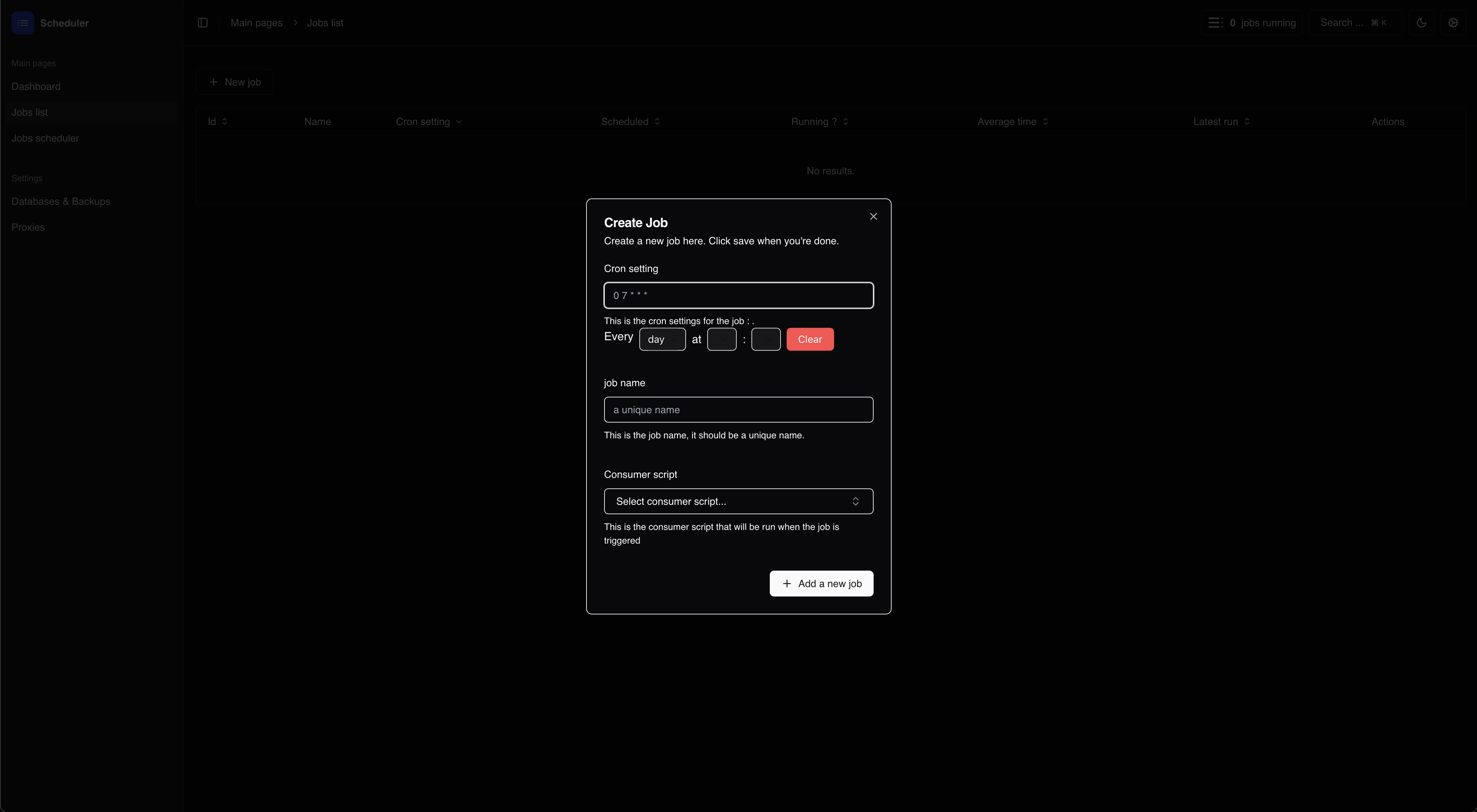

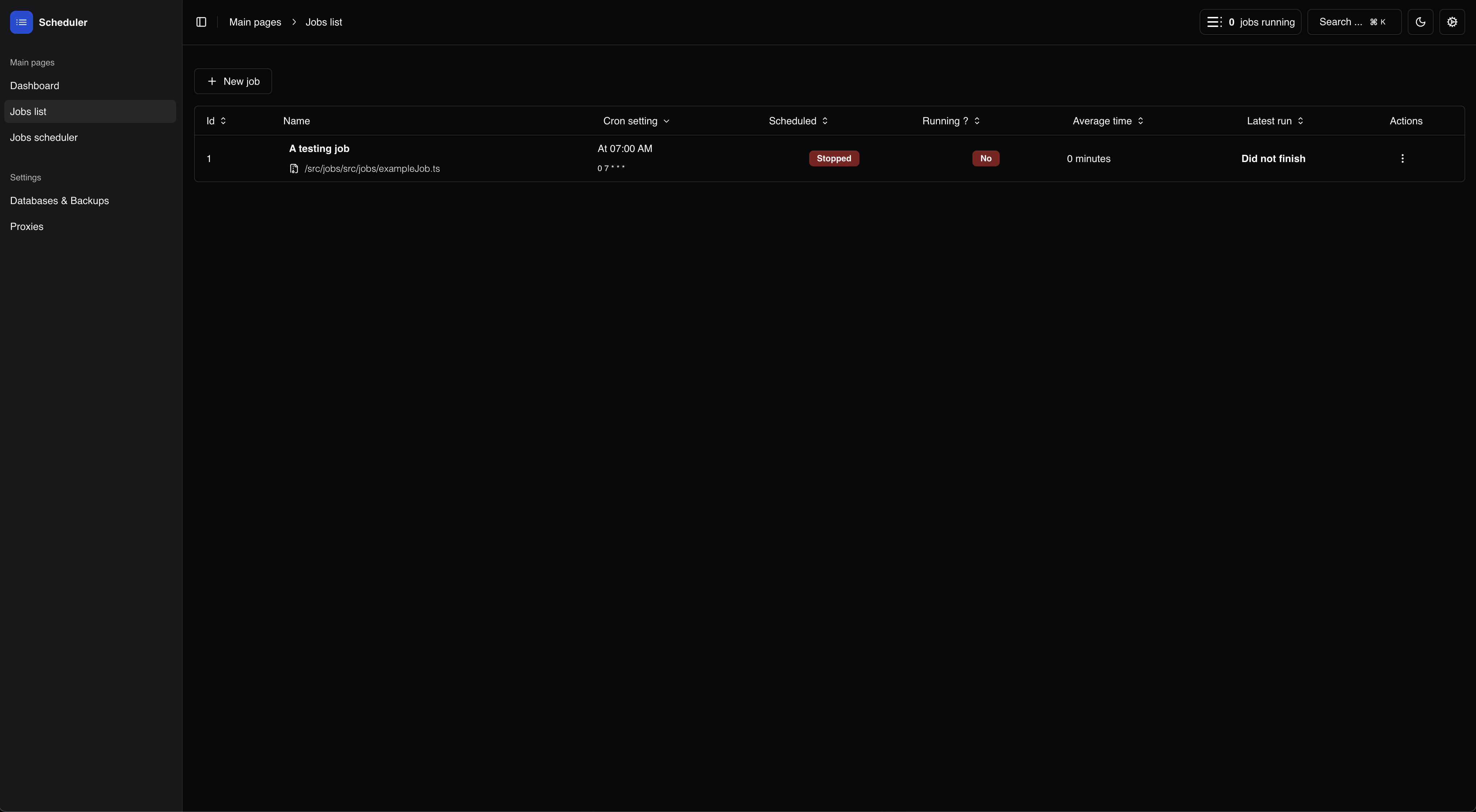

New Job Popup	Job Popup with Fields	Jobs List	Job Running

Job Details & Actions

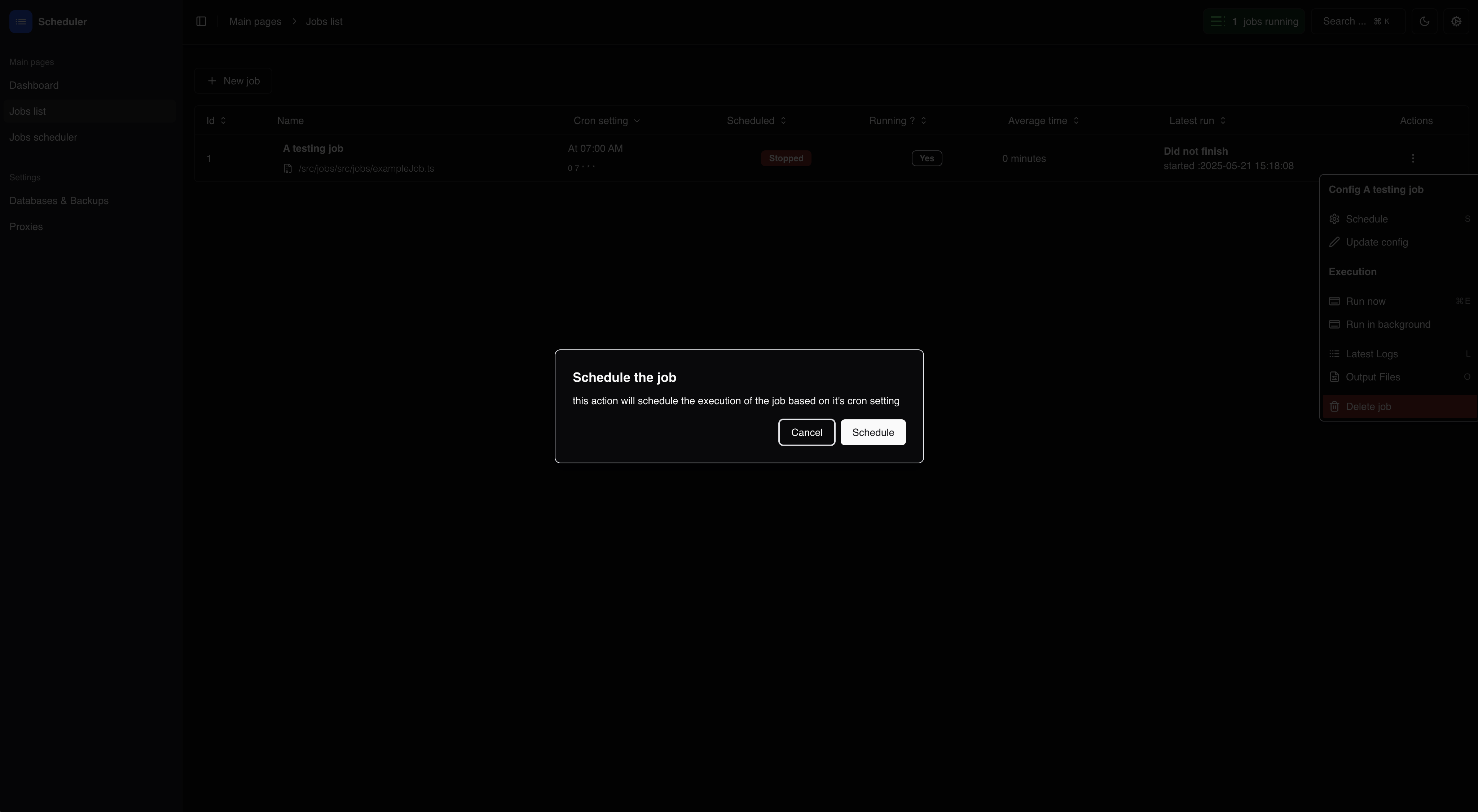

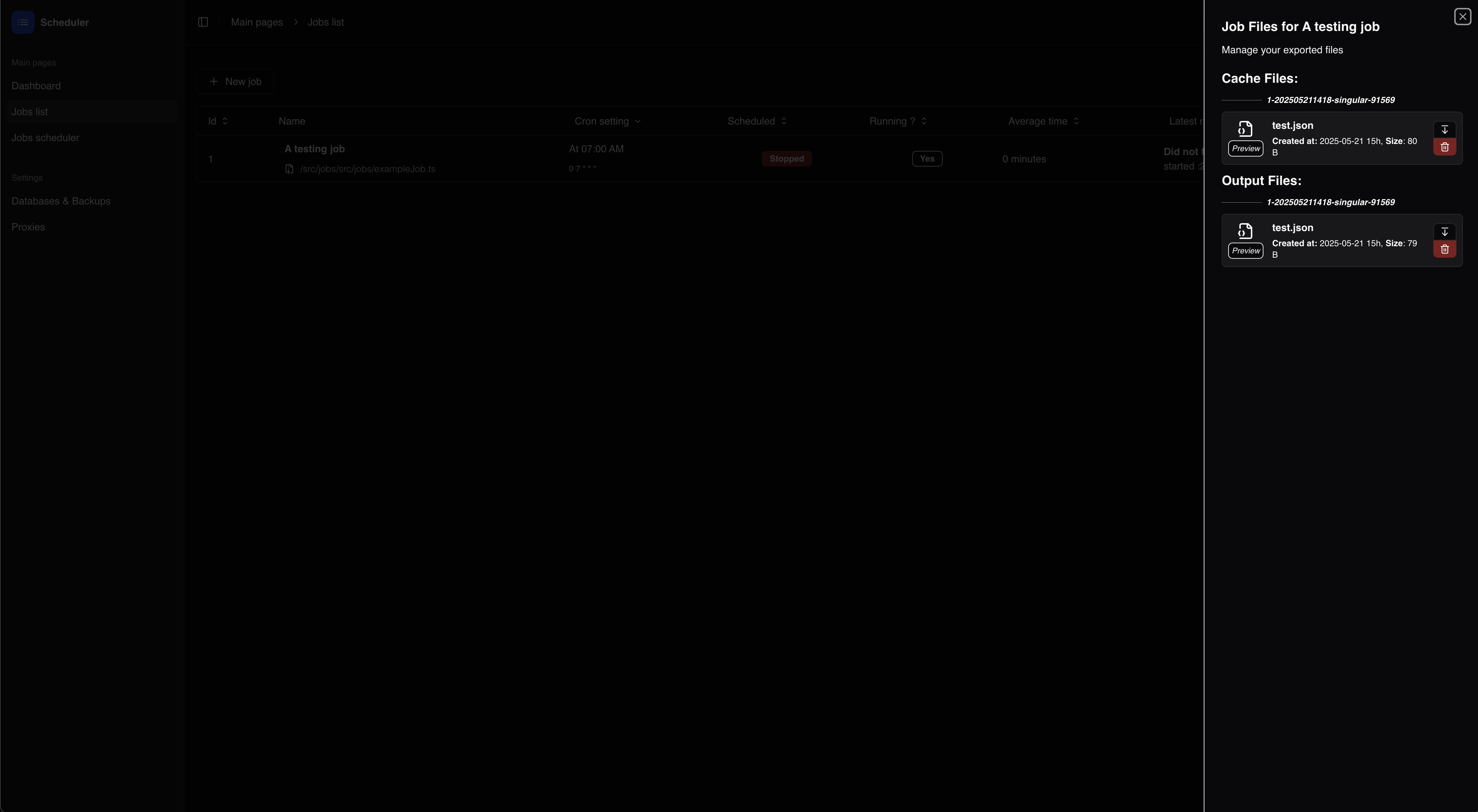

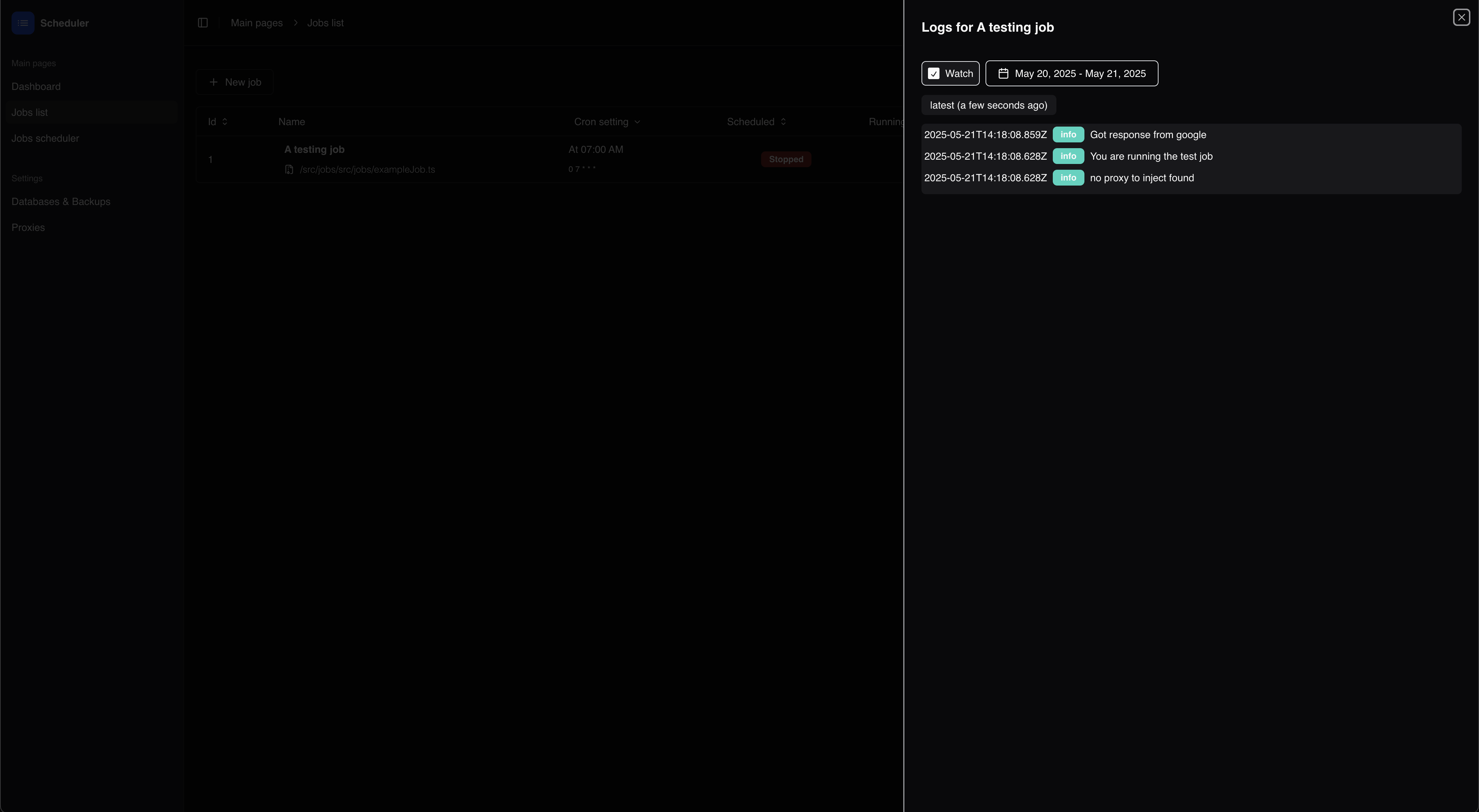

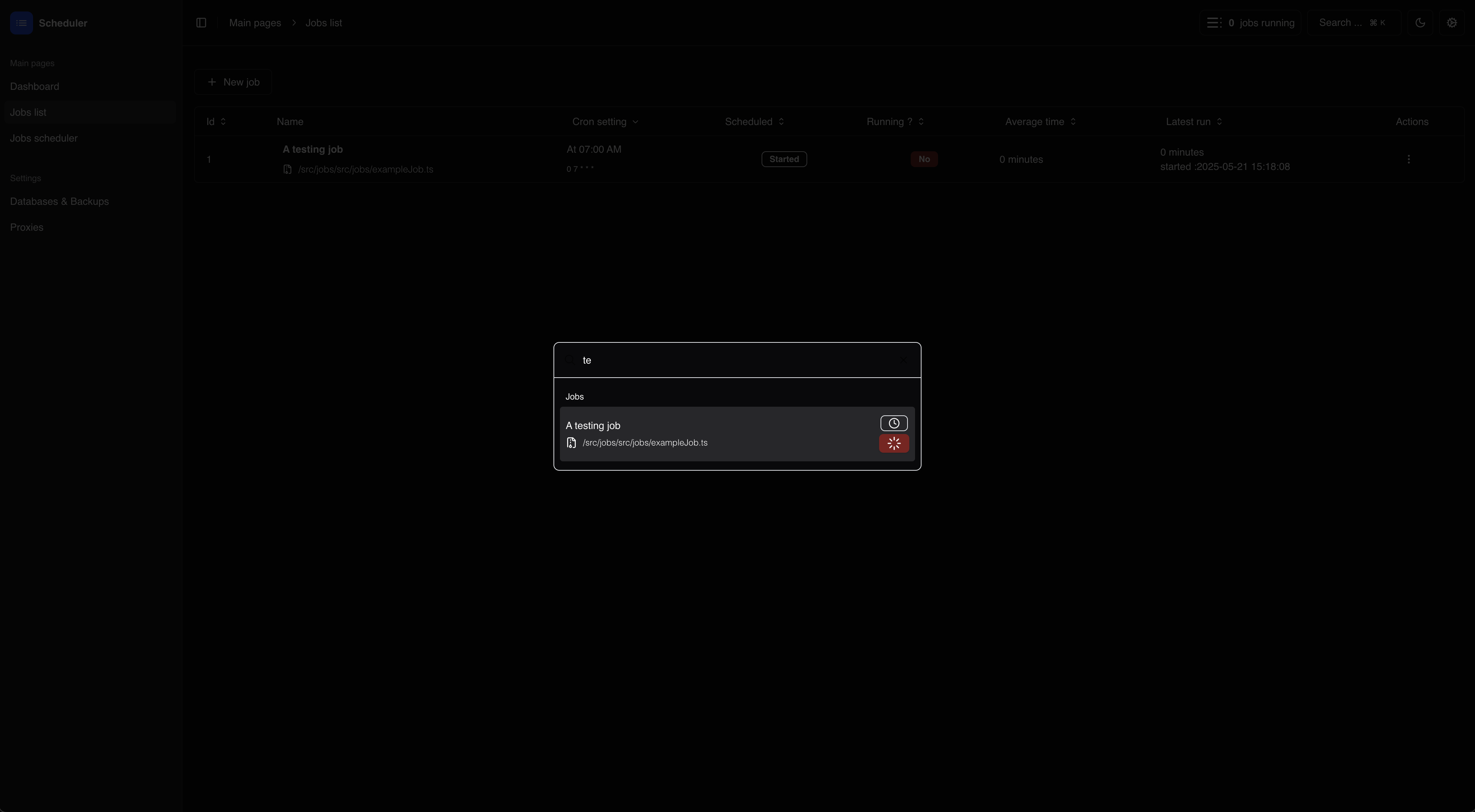

Loki Logs	Output Files & Cache	Scheduling Popup	Quick Search

System Management

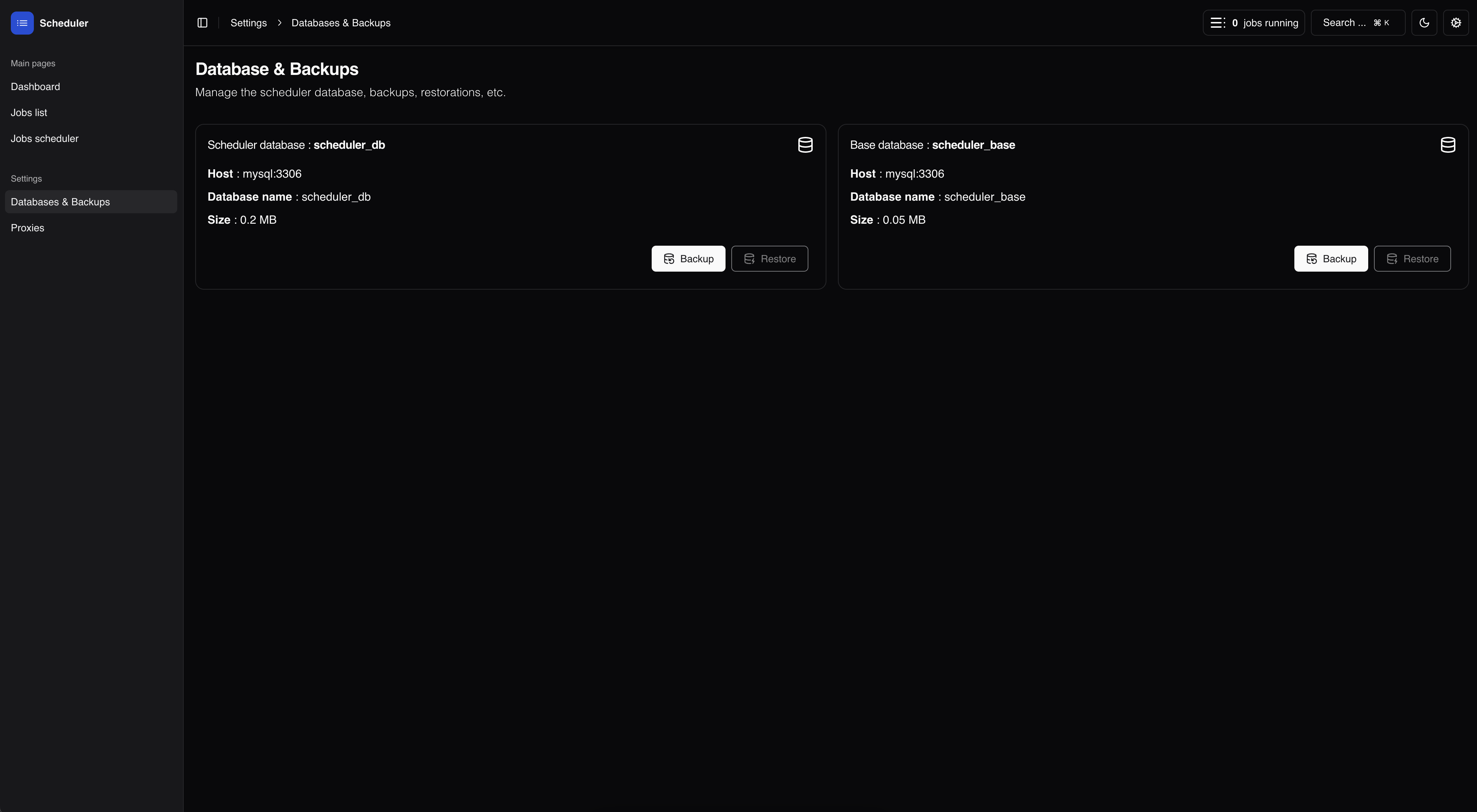

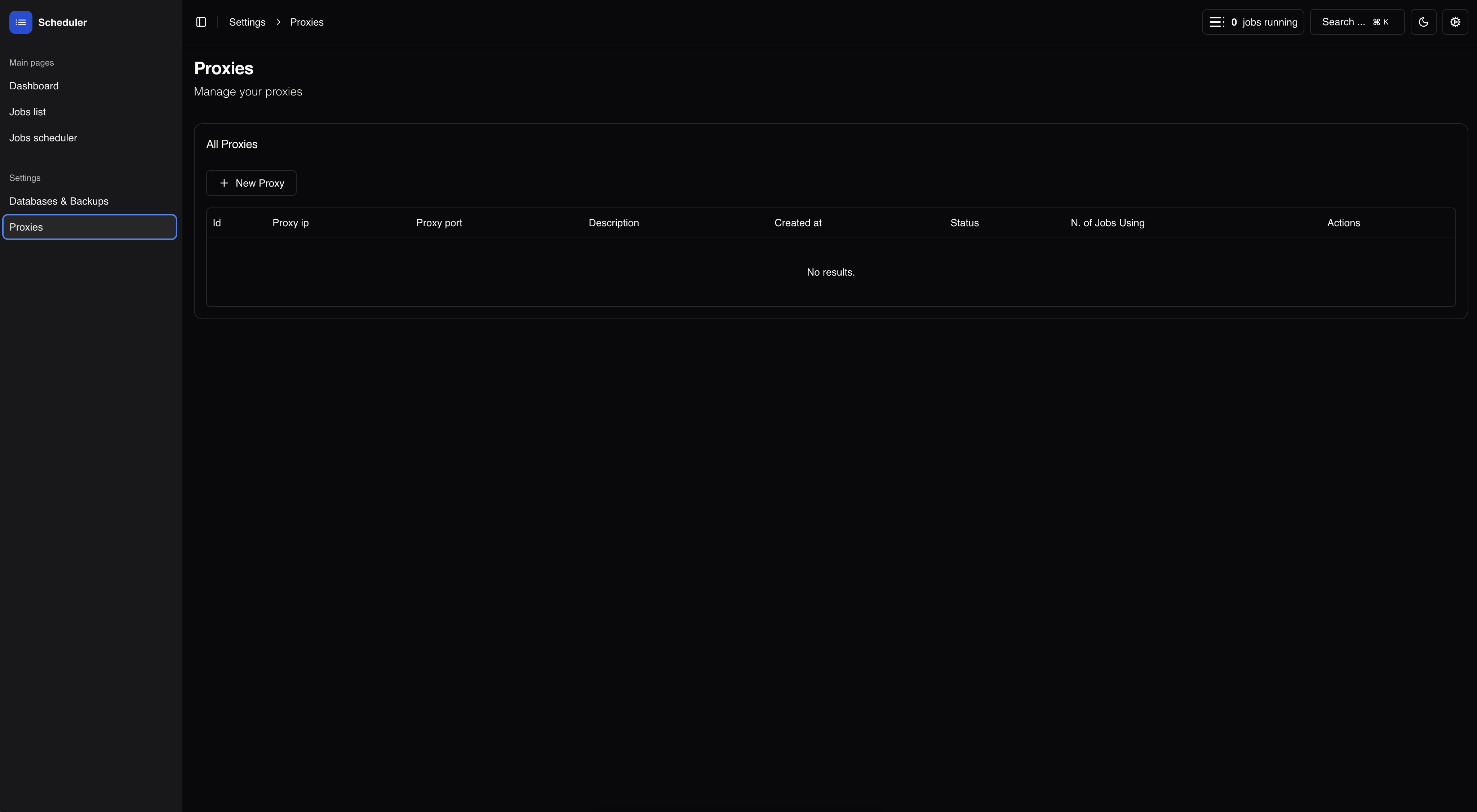

Database Dashboard	Proxies List

---

🤝 Contributing

Contributions are welcome! I (@moda20) review all PRs and test them personally. To accelerate the review process, please include:

• Clear description of changes
• Testing steps and results
• Any relevant screenshots or logs

This applies to all Scheduler services (backend & frontend) as well.

---

📄 License

ISC License - see LICENSE for details

---
