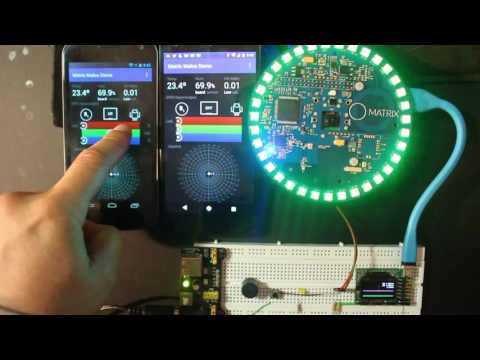

Matrix Creator Android MALOS Demo

Android application that interfaces with MATRIX Creator MALOS layer.

Current Features

• Everloop RGB color control
• Humidity Sensor
• Temperature Sensor
• UV index radation
• IMU (x,y) widget visualitation
• GPIO input/output configuration (pin 0,1)
• GPIO updates callbacks
• Auto discovery Matrix Creator on LAN network
• Manual IP Matrix device target

TODO

• GPIO callback
• Pressure
• Mic Array visualization (beamforming localization)
• ZigbeeBulb basic control
• LIRC custom control config
• RaspberryPi Wifi config via BT4
• MALOS WakeWord config via Android (in development)

Preriquisities

• Please install Matrix Creator CORE (MALOS service package) on your RaspberryPi and reboot it:

curl -L https://apt.matrix.one/doc/apt-key.gpg | sudo apt-key add -
echo "deb https://apt.matrix.one/raspbian $(lsb_release -sc) main" | sudo tee /etc/apt/sources.list.d/matrixlabs.list
sudo apt update
sudo apt upgrade
sudo apt install matrixio-malos
reboot

NOTE:

• For more details: Getting Started Guide
• Please put your creator on the same network
• Android supported 4.4.x or later (target API28)

Download APK

Pre-release demo, please download here.

Preriquisities and dependencies for Build

Clone repository and submodules

git clone --recursive https://github.com/matrix-io/matrix-creator-malos-android.git
cd matrix-creator-malos-android

Fabric configuration

create file matrix-malos-demo/app/fabric.properties with:

apiSecret=<YOUR FABRIC SECRET>
apiKey=<YOUR FABRIC API KEY>

(or import the project on AndroidStudio and config Crashlytics fabric plugin or remove this dependency on gradle app file)

Building and install

./gradlew assembleDebug
./gradlew installDebug
