An updated version of springload/wagtailgmaps. No maintainence intended.

To install: pip install -U git+https://github.com/danreeves/wagtailgmaps@3.0.1

wagtailgmaps

Simple Google Maps address formatter and LatLng provider for Wagtail fields.

Quickstart

Assuming you have a Wagtail project up and running:

$ pip install wagtailgmaps

Add wagtailgmaps to your settings.py INSTALLED_APPS section.

Add a couple of necessary constants in your settings.py file:

WAGTAIL_ADDRESS_MAP_CENTER = 'Wellington, New Zealand'
WAGTAIL_ADDRESS_MAP_ZOOM = 8
WAGTAIL_ADDRESS_MAP_KEY = 'xxx'

WAGTAIL_ADDRESS_MAP_CENTER must be a properly formatted address. Also, remember valid zoom levels go from 0 to 18. See Map options for details.

As of June 22 2016, Google maps requires an API key. See how to Get a key. While you're there, you'll also need to enable the Geocoding Service.

wagtailgmaps expects a CharField (or any other field that renders as a text input) and comes with a MapFieldPanel. In your models.py, your custom Page model would have something similar to:

address = models.CharField(max_length=255)
...

content_panels = [
    MapFieldPanel('address')
]

Notice that the string you pass to the MapFieldPanel is the name of the field, just like when using FieldPanels.

If instead of outputting a formatted address, you want to output a LatLng, you should add latlng=True to the panel:

MapFieldPanel('address', latlng=True)

All the options available are:

• heading - A custom heading in the admin, defaults to "Location"
• classname - Add extra css classes to the field
• latlng - Field returns a LatLng instead of an address
• centre - A custom override for this field
• zoom - A custom override for this field

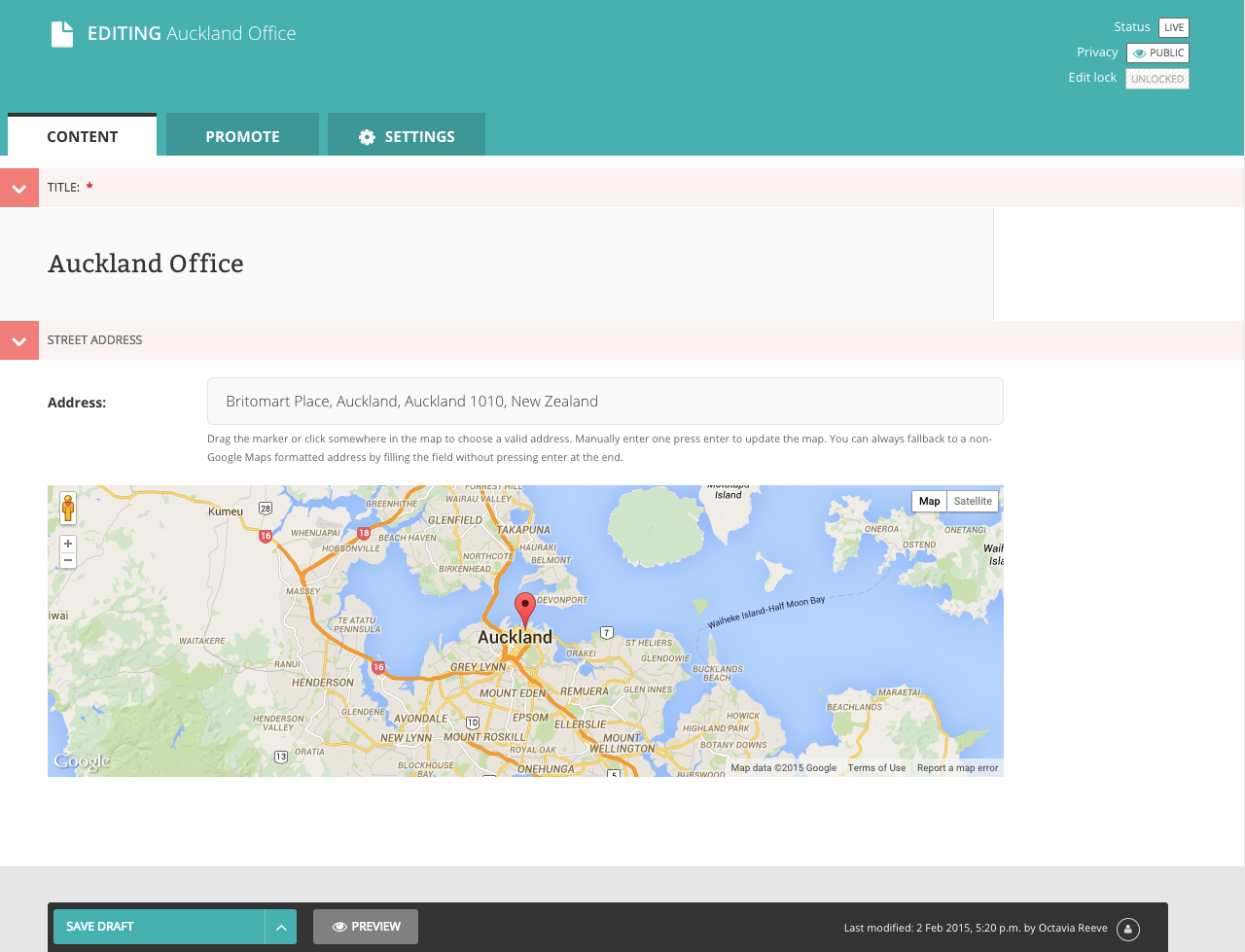

When editing the model from the admin interface the affected field shows up with a map, like the screenshot above.

If using the address option, the field gets updated according to the Google Geocoding Service each time:

• The map market gets dragged and dropped into a location (dragend JS event).
• Click happens somewhere in the map (click JS event).
• Return key is pressed after editing the field (enterKey JS event for return key only).

Feel free to edit the provided JS to add/edit the events you might need.

Once your address field is properly formatted and stored in the database you can use it in your front end Django templates. Example:

<a href="http://maps.google.com/?q={{ address }}">Open map</a>

Or if you opted for the LatLng pair option:

<a href="http://maps.google.com/?q={{ latlng }}">Open map</a>
