G1 RL Project

Reinforcement learning for the Unitree G1 humanoid robot to perform a box grasping task using MuJoCo and Stable-Baselines3.

Technical Report

A detailed write-up covering environment design, reward shaping, and results is available here:

G1 Box Grasp – Technical Report (PDF)

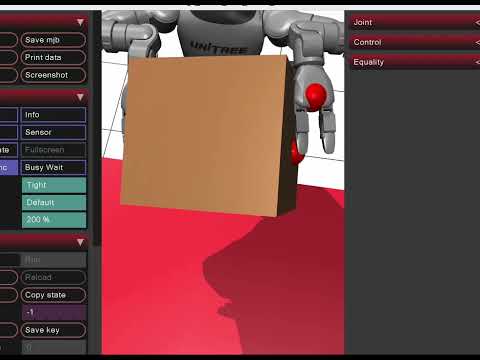

Demo

Overview

The robot's upper body (arms and hands) learns to approach, grasp, and lift a cardboard box from the sides using both arms. The lower body is locked during training to focus learning on arm control.

• Simulator: MuJoCo
• RL Algorithm: PPO (Proximal Policy Optimization) via Stable-Baselines3
• Robot: Unitree G1 (29-DOF with hands)
• Task: Dual-arm box grasp and lift

Project Structure

g1_rl_project/
├── unitree_g1/
│   └── g1_mocap_29dof_with_hands.xml      # Base G1 MuJoCo model
└── Upper_Body/
    ├── g1_box_grasp_env_both_arms_adrian.py # Main RL environment
    ├── g1_box_grasp_train_adrian.py         # Training script
    ├── g1_box_grasp_eval.py                 # Evaluation script
    ├── g1_two_boxes_custom_keyframes_friction.xml  # MuJoCo scene with box
    ├── arms_down_keyframe.xml               # Initial keyframe pose
    ├── mujoco_robot_useful_methods.py       # MuJoCo helper utilities
    ├── g1_reward_debug.py                   # Reward debugging callback
    ├── reward_debug_callback.py             # SB3 training callback
    ├── meshes/                              # STL mesh files for G1 robot
    └── rl_models/                           # Saved model checkpoints

Getting Started

Dependencies

pip install mujoco gymnasium stable-baselines3 numpy

Training

cd Upper_Body
python g1_box_grasp_train_adrian.py

Checkpoints are saved to rl_models/checkpoints/ and the final model to rl_models/.

Evaluation

cd Upper_Body
python g1_box_grasp_eval.py

The eval script automatically finds the latest trained model and renders the robot in the MuJoCo viewer.

Environment Details

• Observation space: Joint positions/velocities, hand fingertip positions, box position/orientation
• Action space: Upper body joint torques (both arms)
• Reward: Shaped reward for approaching the box, making contact with both hands, and lifting to a target height
• Episode termination: Box lifted to target height (success) or timeout
