Rudder - 3D Printer Logbook

I had grown tired of trying to manually track the parameters I tweaked from one print to another. This web app starts to solve that.

A web application for tracking 3D printer activities, maintenance, and print parameters. This application helps you maintain a detailed log of your 3D printing activities and correlate print parameters with outcomes.

Features

• Currently only supports PrusaSlicer and SuperSlicer
• Track print jobs and their outcomes
• Monitor print parameters and changes
• Log maintenance events
• Visual timeline of printer activities
• Store GCode files and their associated metadata
• Track print quality and functionality ratings

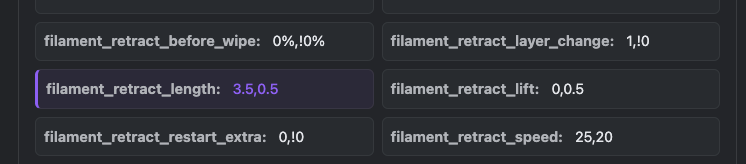

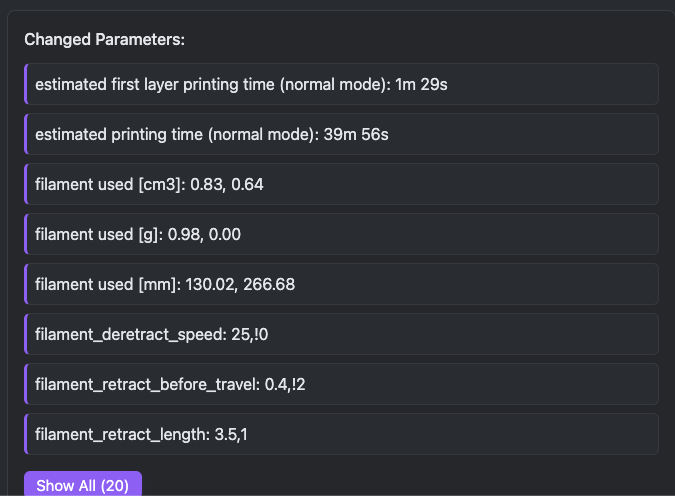

The print Jobs tab highlights slicer parameters from the previous print job that have been modified. This helps identify potential issues and optimize future prints.

TODO

• multi-printer support?
• fixing timeline lag
• export a previous prints settings back into PS or SuSi
• OrcaSlicer??

Setup

1. Install Python dependencies:

pip install -r requirements.txt

2. Configure your Moonraker connection (choose one method):

   Option A: Interactive Setup (Recommended for beginners)

   python start.py

   Option B: Environment Variables

   cp .env.example .env
   # Edit .env file with your printer's IP address
   python app.py

   Option C: Command Line Arguments

   python app.py --moonraker-url http://YOUR_PRINTER_IP:7125

3. Open your web browser and navigate to:

http://localhost:5000

Configuration

Moonraker URL Setup

The application needs to connect to your 3D printer's Moonraker instance. You can configure this in several ways:

1. Environment Variables (.env file) - Recommended
2. Command Line Arguments - For advanced users
3. Interactive Setup - User-friendly guided setup

See CONFIG.md for detailed configuration instructions.

Finding Your Moonraker URL

Your Moonraker URL typically follows this format: http://PRINTER_IP:7125

• Check your printer's web interface for the IP address
• Look in your router's admin panel for connected devices
• The default Moonraker port is 7125

Usage

Adding a Print Job

1. Click "Add New Print" button
2. Enter the file name
3. Upload the GCode file
4. Submit the form

Adding Maintenance Events

1. Click "Add Maintenance Event" button
2. Enter the maintenance description
3. Add any todo tasks if needed
4. Submit the form

Viewing the Timeline

• The timeline view shows all print jobs and maintenance events in chronological order
• Click on any item to view more details

Data Management

Resetting/Cleaning Data

If you need to clear all data (useful for production deployment or testing):

Safe reset with backup:

python reset_data.py

Quick reset without confirmation:

python reset_data.py --force

Create backup only:

python reset_data.py --backup-only

Restore from backup:

python reset_data.py --restore backup_20240101_120000

What Gets Reset

• All print job records from the database
• All maintenance event records
• All uploaded G-code files
• Database tables are recreated fresh
